Model 934010



934010   $197.99



365-Day Annual Timer with Two Relay Outputs; 100 Programmable Events, Password Protection,
10 Programmable Holidays, Built-in Clock Backup Battery, Alphanumeric Backlit LCD Display

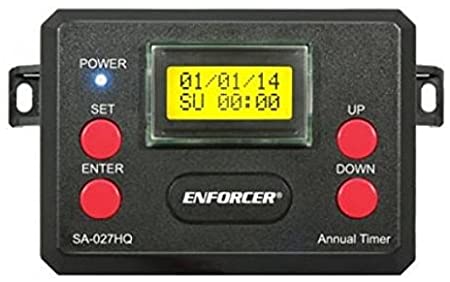

Create comprehensive automatic schedules for almost any N.O. or N.C. relay device with the 934010 Annual Timer Module. The timer has two Form C relays, allowing you to program two devices independently to operate on weekly, daily, or hourly schedules throughout the year. Itís perfect for a variety of applications, including security, lighting control, climate control, and access control.
  • Schedules weekly, daily, or hourly events for two relays
  • Stores up to 50 events for each relay (100 total)
  • Relays operate independently or in tandem
  • Backlit LCD screen makes programming easy
  • Full backup options ensure reliable operation

Advanced Scheduling Options for Precise Control

The Annual Timer Module features an alphanumeric backlit LCD screen and a few simple buttons to make programming easy. Each relay can we programmed with up to 50 scheduled events (100 total), and five different event types are available to choose from: Disable, ON, OFF, Shunt, or Momentary (1~99 seconds). Each event can be scheduled to repeat hourly, daily, or weekly. This block programming lets you easily repeat events over an entire year. You can also program up to 10 holidays to disable the timer on specific days, either a single day or the same day every year.

While the two relays can operate independently, you also have the option of programming them to operate simultaneously by setting the timer to "tandem mode". The timer also lets you override the schedule without hassle anytime.

Timer Features:

  • Two N.O. or N.C. Form C relays (10A @ 120VAC / 28VDC)
  • Allows manual operation of relays without event programming
  • First-person-in function interrupts the timerís normal operation
  • Supports one egress input per relay (two total)
  • Can be set for Standard or Daylight Saving Time
  • Compensates for leap years

Reliable Backups for Programming & Power

Designed to provide reliable scheduling all year round, the timer is powered by a 12/24 VDC/VAC power supply (sold separately) and supports an external backup battery (sold separately). It even has a built-in clock backup battery, plus a built-in battery charger to ensure that your external backup battery is always ready to kick in at a momentís notice in case of a power outage.

Additionally, the timer has EEPROM memory to retain your programming data during a power failure. Data is also password protected, so unauthorized users will not be able to change your schedules without permission.

Technical Details

  • MPN: 934010
  • Input Voltage: 12~24 VDC/VAC
  • Number of Relays: 2
  • Relay Rating: 10A@120VAC / 28VDC
  • Current Draw: 70mA
  • Number of Programmable Events: 50 for each relay, 100 total
  • Blue LED: ON: Power is ON; OFF: Power is OFF
  • Number of Programmable Holidays: 10
  • Battery Charging Current: 90mA
  • Security Code: 4-digits, numeric, ON/OFF
  • Dimensions: 4-3/16 x 3-1/16 x 1-1/4 inches (107 x 78 x 31 mm)
  • Weight: 5.8 ounces (164g)
  • Approvals: RoHS
Contents
  • Annual Timer Module
  • (2) Screws
  • (2) Backup Battery Wires
  • User Manual
