Wireless Controls and Automation

Wireless Links I/O Point-to-Point Monitoring and Control

Migro® Bidirectional - Two Way
.

No parameterization nor programming required

No Internet, Transparent I/O System

No Third party cell, No monthly fees

You have full control over your own carrier

Power system 12/24VDC solar ready

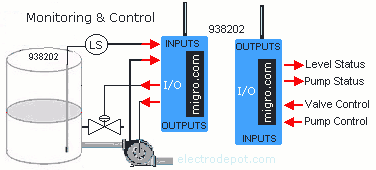

Real time status feedback from the remote site

Fast installation and easy setup

■ 2 Miles (3.km) line-of-sight with Yagi 7 dBi antenna
■ Range • 1500. feet (500.m) in-building
■ Optional range 17 miles (30 km) line-of-sight

Applications: Field operations, irrigation, PLC remote i/o, lighting, process, pumps, generators, solar systems, water management, plantations, remote monitoring, mobile, security, robots, conveyor control, traffic control, test and research equipment, industrial process, plc extension, wire replacement, hazardous area remotes.

■ Set with Master & Slave

Each one with:
■ 4 Digital inputs, N/O Dry Contact,
■ 4 Relay outputs SPST 5A, 240V Pilot duty class 2
■ Operation in 12 or 24 VDC


       Select the antenna Two (2) are required

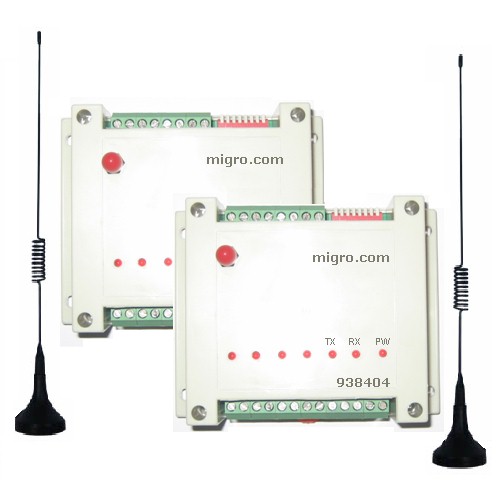

938404

Bidirectional Wireless 4 Channel I/O Digital

DIN Rail or Panel mount module

Select the antenna Two (2) are required

Up to 3 km+ line of sight

Up to 5 Km+ line of sight

Up to 200 meter line of sight

Specifications

Digital Input / Output
Supply power	12 VDC ±10% @ 600 mA
Inputs	N/O Normally open digital dry contact
Outputs	Relay contact 5Amp SPST 240V Pilot duty
Output Mode	Normal or Retain status
Ambient temp	14° to 140° F (-10° to 60° C)
Ambient RH	5% to 95% RH non condensing
Connection	Terminal screws DIN
Response	500 msec full duplex
Weight	5.2 lb (2.40kg) each unit, 2 and 4 channel
Dimensions	5"W x 4"H x 2"D (130 x 74 x 50 mm)

Radio System
Frequency	433 MHz license free industrial
Receiver	Digital 16 bit, sensitivity -110 dBm
Configuration	DIP switch
Data rate	19.2 KBPS Encoded
Antenna external	50 Ohm (optional)
Compliance	FCC CFR part 15.247 ISM
Digital Transmission	Gaussian_frequency-shift_keying
Transmitter channels	16 addresses per system
Transmitter power	per FCC Part 15.249, 50mV/m @ 3m
Optional Enclosure Selection	NEMA4 selection: Fiber or Metal.

DISCLAIMER: Radio control equipment in not to be used in life safety. Radio control systems are subject to applications, environmental and atmospheric conditions,
We are not liable of failures on miss applications, radio black outs or interruption of the transmissions. Radio Installations shall be performed by a certified professional.
