Single Channel ■
4331CH-DC 12VDC
$920.00
943301 4331CH-AC 120/240VAC
$998.00
Operation: Channel 1 Closure,
Output 1 ON
•
Channel 1 Opening, Output 1 OFF
Performance •
360m (1200ft)
line-of-sight w 6 inch antenna
Operation:
12VDC
or 120/240VAC
Transmitter input N/O Dry contact
• Relay Output SPST, 6A Class 2 pilot duty •
Heavy Duty Weatherproof , IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial
ISM band
Supply power 12 VDC @
400 mA
Inputs
N/O Normally
Open, digital dry contact
Transmitter power per
FCC Part 15.249,
50mV/m @ 3m
Transmission Digital Encoded
Gaussian_frequency-shift_keying
Channels
16 addresses per system
GFSK
Input Wiring
Din Terminals,
Dry Contact
Response Loop 500 msec
Weight 2 .2 lb (1.10kg)
each unit
Dimensions 9 x
9 x 3.5
in. /
(230.00 x 230.00 x 90.00 mm )
Specifications Digital Receiver
Supply power 12 VDC @
300 mA
Output
Relay SPST contact
6.Amp, 30V/240vac
Class 2 pilot duty
Frequency 433 MHz •
License free Industrial ISM band
Configuration
DIP switch factory
preset
Compliance
FCC CFR part 15.247, 95 sub E
Wiring Components
mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp 14° to 140° F (-10° to 60°
C)
Mounting
IP22, UL94-5VA ,
Plastic Enclosure IP65
9
x 9 x 3.5 in.

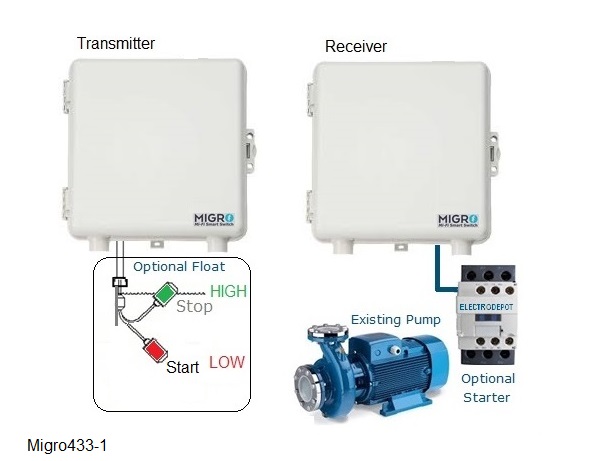

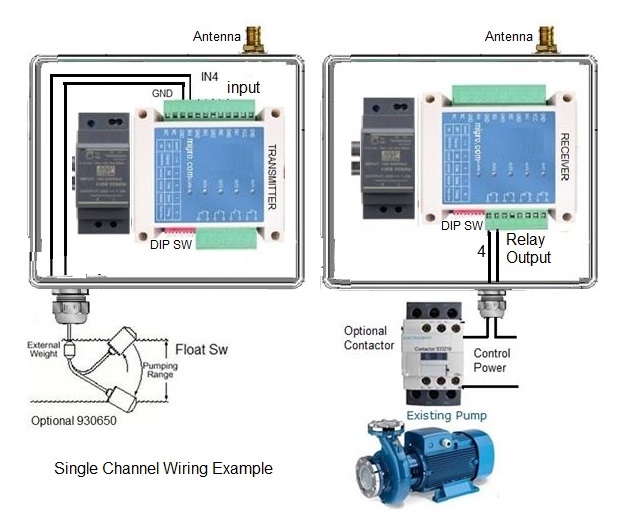

943327 Migro433-1 Single Channel Wiring Example

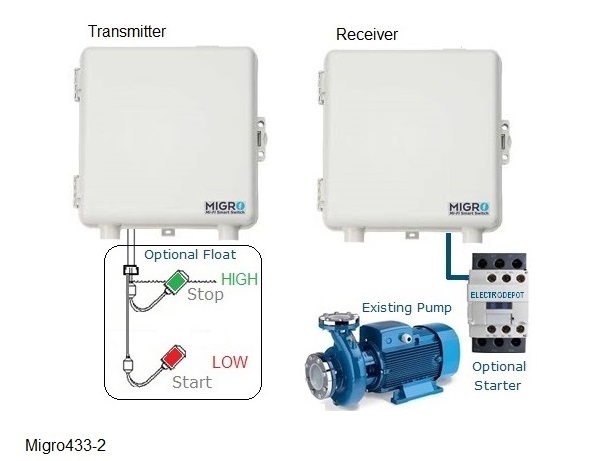

Start - Stop - 2 Channel
■ 120VAC
$1,240.00
Operation:
Channel 1
= Pulse signal, Start Output 1 ON
•
Channel 2
= Pulse signal,
Stop Output 1 OFF

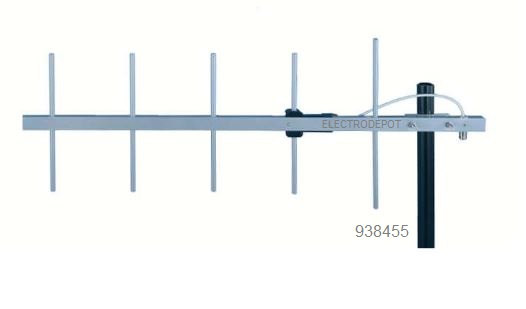

Accessories
■
Systems are supplied
with Two
Short Range
OPTIONAL ( TWO are
required )

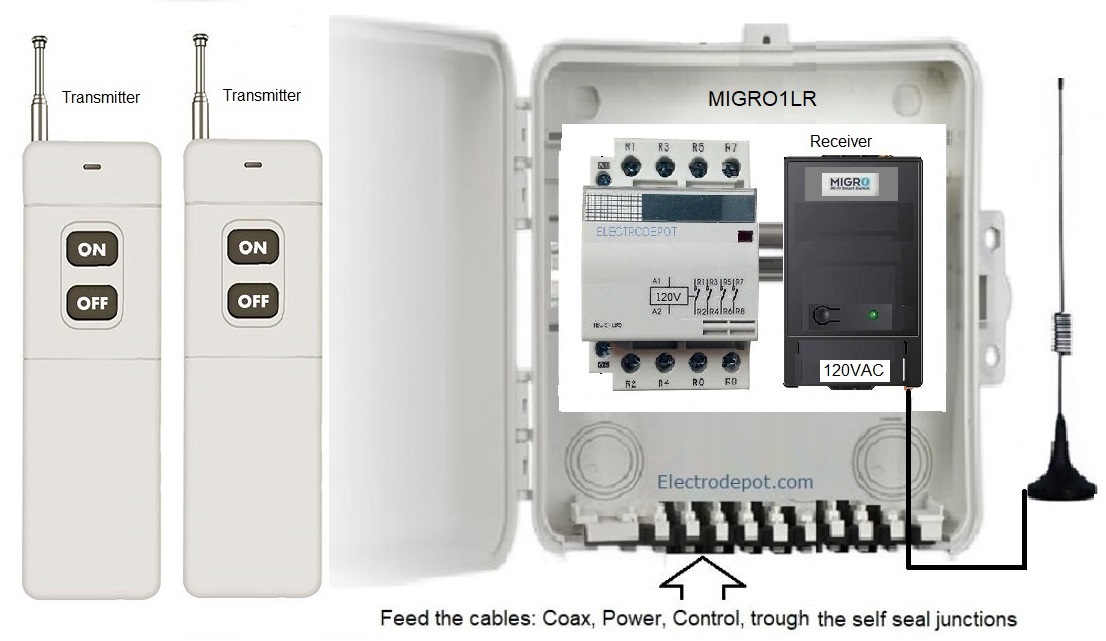

Handheld
Transmitter Start - Stop operation

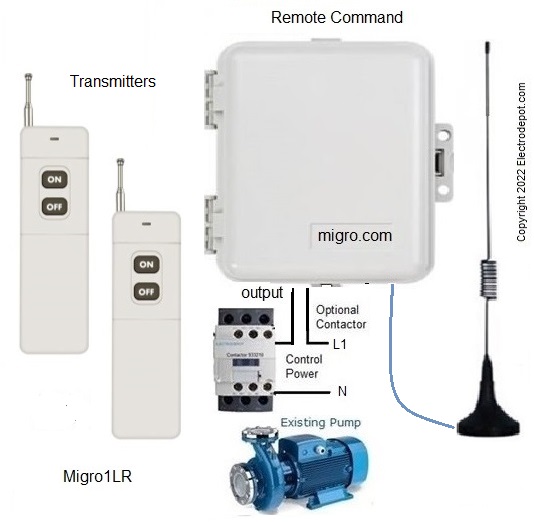

Compact
Wireless Radio Controls
