Industrial Wireless Radio Controls
Please
request a quotation
Supplied:
Weatherproof Enclosure
One Omni Antenna 931487
with 12ft Coax Cable |
Transmitter with Wi-Fi
915447
Four (4) Channel
with
Wi-Fi
Interface
Wireless Standard: Wi-Fi 2.4GHz b/g/n
Security Mechanism: WEP/WPA-PSK/WPA2-PSK
Via Cell phone, Universal Functions: Remote ON/OFF
App Support: Free IOS and Android mobile App eWelink
Sync Status: Real time device status provided to App
Network Support: Control electrical devices over Wi-Fi
or 2/3/4G mobile network or Voice Control:
Works perfectly with Amazon Alexa, Google Home
Transmitter Range Selection:
5Km, 3 Miles, 915447-MW05
12Km, 7 Miles, 915447-MW12
|
 |
 |
Four
(4) Channel Receiver 915424R
• Operation: 120/240VAC
or 12VDC
•
•
Receiver with signal strength indicator
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty
Weatherproof
, IP65 enclosure
• License free 154MHz Industrial
MURS band
Supplied:
Weatherproof Enclosure 9x9x4 inches
One Omni Antenna 931487
with 12ft Coax Cable |
|
 |
Single (1)
Channel Receiver 915427R
915427
Fail - Safe
Single Channel System:
Operation: 120/240VAC
or 12VDC
•
Receiver with signal strength indicator
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty
Weatherproof
, IP65 enclosure
• License free 154MHz Industrial
MURS band
■
Operation:
Example
■ SW1 Close:, Pump Start.
■ SW1
Open: Pump Stop.
( 30 Second OFF Delay)
Supplied: Weatherproof Enclosure
9x9x4 inches
One Omni Antenna 931487
with 12ft Coax Cable |
|
| |
Please
request a quotation |
|
|

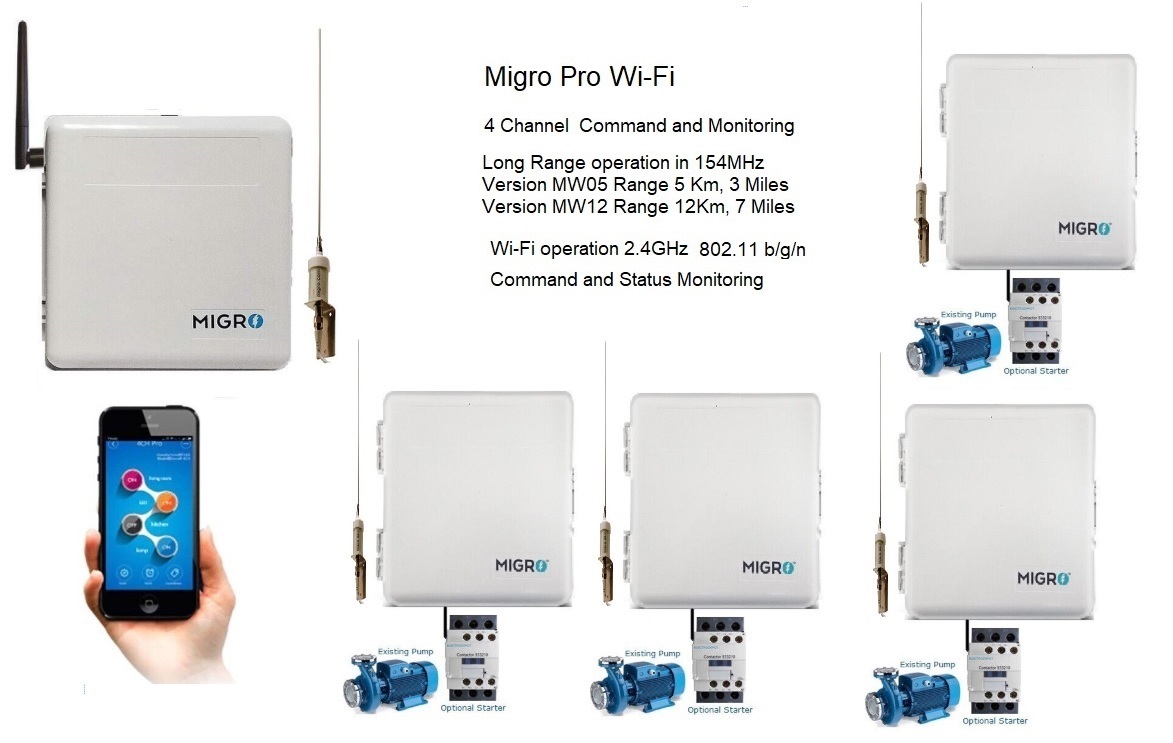

Application with Multiple Remote Receivers
|
■
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be performed by a
certified professional
|
|
Turn
electrical devices on/off from anywhere
Command and Status from the Migro App
Remote
operation for: Pumps, Lighting, Process, Alarms, Gates,
Valves,
|
Wi-Fi Interface
Wireless Standard: Wi-Fi 2.4GHz b/g/n
Security Mechanism: WEP/WPA-PSK/WPA2-PSK
Via Cell phone, Universal Functions: Remote ON/OFF:
App Support: Free IOS and Android mobile App eWelink
Sync Status: Real time device status provided to App
Timing: Set scheduled/countdown timers to turn
on/off at specified time
Control your systems together with your family
scene:
Turn on/off a gang of devices one tap Smart Scene:
Network Support: Control electrical devices over
Wi-Fi
or 2/3/4G mobile network Voice Control:
Works perfectly with Amazon Alexa, Google Home
Long
Range Performance
• 3 miles ( 5 km)
line-of-sight w Omni antenna
• Extended range up to 20 km
• Operation: 120/240VAC
or 12VDC
•
Transmitter input N/O Dry contact
•
Receiver with signal strength indicator
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty
Weatherproof
, IP65 enclosure
• License free 154MHz Industrial
MURS band
• Not limited to line of
sight with High Gain Antenna
• Factory configured systems, Ready to operate
• No setup or programming required
|
| Supply power |
120/240VAC or
12VDC / 8watt |
| Solar Ready |
12VDC Operation |
|
Inputs |
Normally
Open, Wi-Fi Interface |
| Transmitter power |
Per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Power Consumption |
Standby 1mA,
Transmission Pulse 1000mA Solar Ready |
| Response |
Loop 500 msec
|
| Weight |
3.8 lb (1.70kg)
each unit |
| Dimensions |
12"W x
12"H x
3"D (304 x 304 x 100 mm) |
|
Specifications Digital Receiver
|
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Output |
Relay 6Amp, SPST Class 2 pilot duty |
| Frequency |
154MHz •
License free MURS band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure IP65
|
Weatherproof, 9"W x
9"H x
4"D
(228 x 228 x 100 mm) |
(*) Final Component layout and Dimension may vary
|
■
Applications:
Industrial Monitoring, Pump control, Monitor remote
sites,
Tank Level,
Lighting control, Remote Mobile system,
PLC remote, SCADA,
Gates, Solar,
Irrigation, Marinas,
Factory process control, Alarms, Generators,
Traffic controls, Wire replacement.
■
|
|
