       Wireless Pump Control, Lighting Control, Signal or Alarm Annunciator.

Unlimited applications,  Long range control  27MHz
Six (6) channel wireless control system


971215 Please Request latest price

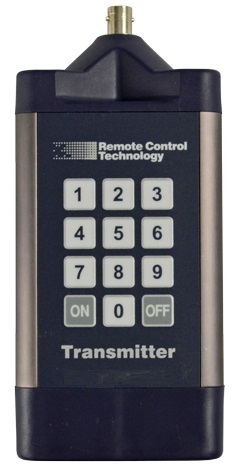

Portable Transmitter:
  • Rugged Handheld Aluminum Enclosure
  • 2-Watt Radio Transmitter
  • 9 VDC Battery
  • 8” Whip Antenna
  • Belt Clip
  • Supply Power: 9 VDC alkaline battery
  • XMIT Current: 600 mA
  • STBY Current: 1 mA
  • Format: PDTMF   Code

Base Transmitter     and     Base Receiver      Please Request latest price

  • 6 Output Receiver
  • 15-Watt Power Supply (110 VAC to 240 VAC Input,
    12 VDC Output)
  • NEMA 4X Enclosure
  • 42” High-gain Antenna
  • Right-angle Antenna Mount
  • 25’ Coaxial Cable w/ BNC Connectors
  • Supply Power: 12 VDC
  • (15 W power supply included)
  • Output Current: 1 amp per output
  • STBY Current: 30 mA


   2 Miles ( 3 km )    ■ Application dossier
  Optional extended range up to 10 Miles (16Km)


Operating Voltage: 12VDC/ 110-220VAc
Operating Temperature: -4° to +140° F (-20° to +60° C)
Number of Codes: 64000 codes, factory preset 16 BIT Digital
Compliance: FCC CFR part 15.247, 95 sub E
Transmission Power per FCC Part 15.249,  50mV/m @ 3m
Carrier Frequency 27 MHz, industrial band Free
Current Transmitter Standby 0.1mA, transmitting 600mA
Current  Receiver Standby 70 mA, operation, 150mA
Data Input TX  Dry contact   N/O
Relay Output 1 Amp max, 30V max  Class 2 pilot duty
Antenna Impedance 50 Ohms
Dimensions: 11.5"H x 8.5"W x 4"D (240 x 140 x 100 mm)
Weight 6 lb. (3.4 Kg) each
Enclosure NEMA4 IP65 Fiber , wall or pole mount
  Transmitter & Receiver easy to install components:  # 971215

1  971218  Portable  Transmitter
1  931216 Base Receiver pre-wired,  relay output 12V, pilot duty
1  Antenna 42 inch Base Omni 5 dBi with PL259 connector
1  NEMA 4  IP65 Fiber Enclosure for wall or pole mount
    Instructions, installation & wiring diagram,

Delivered by Remote Control Technology

The 971215 system is designed for outdoor/indoor industrial wireless controls applications. The transmitter has an output power of 2 watts @ 26.995 MHz. The potential range is approximately 2 miles* and, with proper antenna application, is not limited to line of sight.


Operation is simple: select the receiver output number you wish to activate, enter it on the keypad and press the “ON” key. The transmitter will immediately send an “ON” transmission to the receiver, changing the state of the selected receiver output from 0 VDC to 12 VDC @ 1 Amp. The receiver output will then be used to activate the attached external 12VDC relay. Immediately after pressing the “OFF” key, the transmitter will send an“OFF” transmission to the receiver, changing the state of the selected output from 12 VDC to 0 VDC, deactivating the attached external relay.


DISCLAIMER:  Contact a licensed professional for your project.  \  WARNING   Radio control equipment in not to be used in life safety.
