Model: 934190



934190   $129.99


Optional Base

11DIN   $7.99


Operating and installation Manual

Description:  H3CA-A Timer   Multi function Digital

Timer:   0.1 Sec. to 9990 hrs;
  •  Field-selectable operation modes

  •  Universal AC/DC supply voltage timer

  •  Operations include ON-delay, Repeat cycle, Signal Interval/OFF-delay,
    Signal-OFF delay (I and II), Interval, Cycle and Signal ON-delay/OFF-delay

  • Selectable no-voltage start, reset, gate and check inputs expand capabilities

  • Timer remaining LCD bar graph and LCD output status indicator

  • Panel mounting adapters, sockets, and accessories may be ordered separately

Digital-set timer with 0.1 Sec. to 9990 hr timing range.

  Current, Rating 3 A   @250 VAC SPDT (no motor load)
   Display Type LCD
  Mounting Type Panel, Track⁄Surface 48 x 48 mm
  Temperature, Maximum 55 °C , Minimum -10 °C
   Timing Function  On Delay, Off Delay 1, Off Delay 2, Interval Delay, Cycle One-shot, Repeat Cycle Equal On/Off Time, Signal Interval/Off Delay, Signal On Delay/Off Delay
  Voltage, Power    24 VDC ,  24,120, 220 VAC  1.5W    (universal input)
  Type, Size Solid State IP54, 1/16 DIN  48 x 48 mm
  Timing Range  0.1 Sec. to 9990 hrs

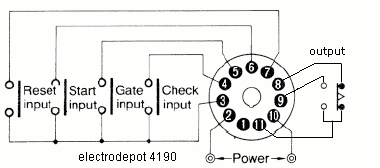

  Termination  1⁄16 DIN     11-Pin Round Socket
.
.
